Yeni RCF Kolonka, Növ - Toy üçün, rəng - Qara

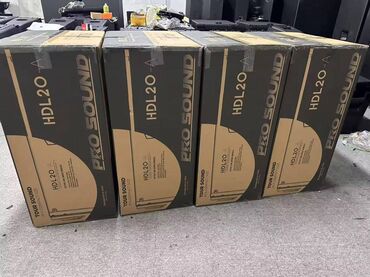

Salam RCF HDL-20A teze bagli qutuda Hec Iwlenmwyib Idial vezyetdedi isteyen olsa harda istese yoxlaya biler >>>>>>>


>>>>>>>>>>> HDL 20-A
ACTIVE LINE ARRAY MODULE
DESCRIPTION
The careful acoustic design, no compromise
transducers and a unique, composite cabinet,
design make the HDL 20-A the preferred tool
of many professionals. Perfect in live sound
reinforcement and reliable installed situations.
The HDL 20-A is the ideal choice when line
array performance is needed and a fast and
easy set up is a must. The system is powered
from a 1400 Watt Peak Power 2 way digital
amplifier, sound is processed from a powerful
DSP. The processing includes cluster and HF
projection correction and special new presets
for indoor and high curving situations. The
system features state of the art RCF
transducers, two powerful 10” for a solid bass
reproduction and a large format 3” voice coil
compression driver to deliver vocal clarity and
high definition with an incredible dynamic.
The HDL 18-AS is the ideal flyable bass
complement for the HDL 20-A array system.
FEATURES
• 1400 Watt Peak power - 700 Watt RMS
• 135 dB max SPL
• 55 Hz 20 kHz frequency response
• 2 x 10" Woofers
• 1 x 3" Compression Driver
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics
• Composite PP enclosure structurally wooden reinforcedDATASHEET
TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response: 55 Hz ÷ 20000 Hz
Max SPL @ 1m: 135 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 15°
Transducers Compression Driver: 1 x 2.0'', 3.0'' v.c
Woofer: 2 x 10'', 2.5'' v.c
Input/Output section Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Processor section Crossover Frequencies: 800 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Cluster, HF, High curving, Indoor
Power section Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
Standard compliance CE marking: Yes
Physical specifications Cabinet/Case Material: PP Composite
Hardware: Rigging flyware
Handles: 2 side, 2 back
Grille: Steel
Color: Black
Size Height: 294 mm / 11.57 inches
Width: 705 mm / 27.76 inches
Depth: 445 mm / 17.52 inches
Weight: 30.2 kg / 66.58 lbs
Shipping informations Package Height: 375 mm / 14.76 inches
Package Width: 800 mm / 31.5 inches
Package Depth: 500 mm / 19.69 inches
Package Weight: 33.2 kg / 73.19 lbsDATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
PART NUMBER
• 13040008
HDL 20-A
115V
EAN 8024530009977
• 13040007
HDL 20-A
220-240V
EAN 8024530009960DATASHEET
